Double Orifice Air Release Valve

This valve is a pipeline will be matched equipment, apply to the temperature does not exceed 100 ℃ water, hot water pipe on the pipe from the air.

Double Orifice Air Release Valve

Festures of Double Orifice Air Release Valve

Festures of Double Orifice Air Release Valve

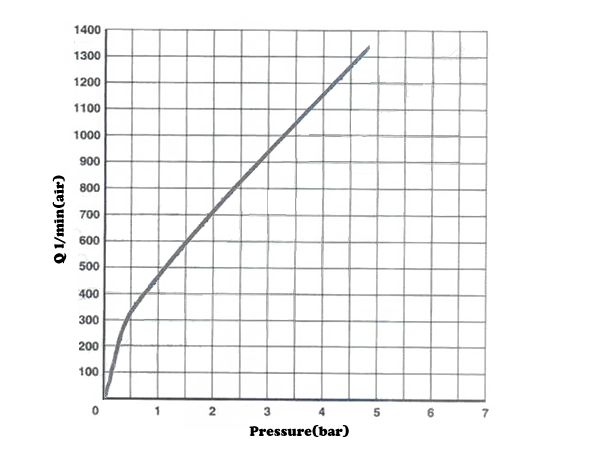

  • Body is provided with a shock-proof inner tube to protect the float;

  • Lower water pressure can be closed to prevent drainage;

  • When there is negative pressure, the piston quickly opens to breathe;

  • Stainless steel floating ball, long life.

Double Orifice Air Release Valve Working Principle

Double Orifice Air Release Valve Working Principle

This valve exhaust, buoy, by gravity pull down one end of the lever, the lever in the tilt state at this moment, in the leverage and vent contact appeared gap, air through the vent through the gap, with the air discharge, water level rise, buoy under the effect of the buoyancy of water float upwards, the lever on the seal face pressure on the porosity, gradually until the vent is completely blocked. The exhaust valve is now completely closed.

Double Orifice Air Release Valve Installation and Commissioning

Double Orifice Air Release Valve Installation and Commissioning

When installing the double orifice air release valve, always install a protective valve on the front end to avoid stopping water from being tested. For specific use, please consult ZECO Valve Group.

Double Orifice Air Release Valve Material and Standard

Size Range: 2"~12"

Pressure Rating: 10bar ~ 25bar

Face to Face Dimensions: AMSE B16.10, EN558-1

Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2

Coating: Fusion Bonded Epoxy Coating

Inspection and Test: ISO 5208 / EN 12226-2


Part

Material

Standard

Body

Ductile Iron

EN 1563/DIN 1693

Bonnet

Ductile Iron

EN 1563/DIN 1693

Exhaust Hood

Ductile Iron

EN 1563/DIN 1693

Float Ball

Stainless Steel 431

EN10088-1/ASTM A959

Strainer

Stainless Steel 431

EN10088-1/ASTM A959

Tank

EPDM / NBR

ISO 4633

For the materials options not listed, consult factory.

ZECO manufactures valves in more than 50 different alloys.
